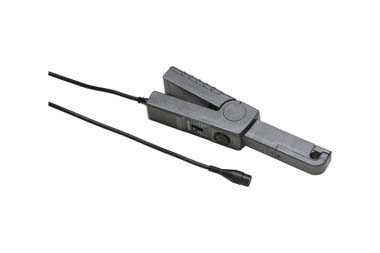

福祿克80i-110s 交/直流電流鉗 規格數據：
| Specifications | |
| Nominal current range | 10 A, AC/DC |
| 100 A, AC/DC | |
| Continuous current range | 0.1 A - 10 A AC/DC |
| 1 A - 100 A AC/DC | |
| Maximum non-destructive current | 140 A - 2 kHz |
| Lowest measurable current | 0.1 A |
| Basic accuracy | 100 mV/A setting: 50 mA to 10 A ±3% of reading +50 mA |
| 10 mV/A setting: 50 mA to 40 A ±4% of reading +50 mA | |
| 40 A to 80 A ±12% of reading +50 mA | |
| 80 to 100 A ±15% of reading | |
| Useable frequency | DC - 100 kHz |
| Output level(s) | 10 A range: 100 mV/A |
| 100 A range: 10 mV/A | |
| Zero error adjustment | Yes |
| Safety Specifications | |
| Safety | CAT II, 600 V |
| CAT III, 300 V | |
| Maximum voltage | 600 V |
| Mechanical and General Specifications | |
| Warranty | 1 year |
| Battery life | 9 V, 55 h |
| Maximum conductor diameter | 11.8 mm |
| Output cable length | 1.6 m |
| BNC adapter | Yes |
福祿克80i-110s 交/直流電流鉗 主要特性：
福祿克80i-110s 交/直流電流鉗 產品概述：
80i-110交/直流電流鉗與任何福祿克示波表、功率諧波分析儀、萬用表或其他電壓測量工具兼容，其具有以下特點：BNC輸入連接器或如果使用儀表，使用適配器PM9081/ 001將香蕉插頭轉換為BNC連接器。
