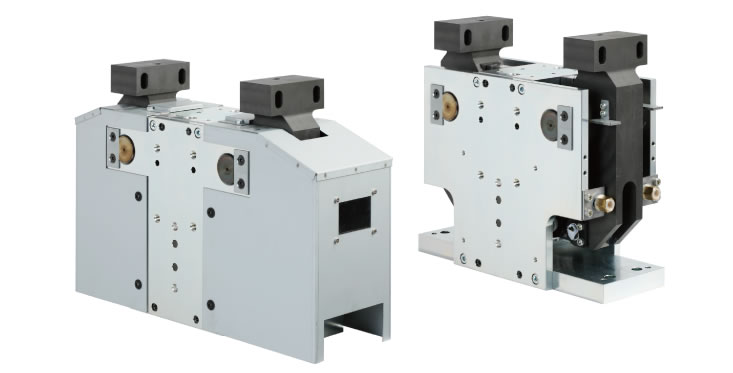

SMC氣缸WRF100車架夾緊缸：
| 系列 | 缸筒內(nèi)徑（mm） | 行程（mm） |
|---|---|---|
| WRF100 | 100 | 48 |
High clamping force makes it suitable for a broad range of applications
High repeatability

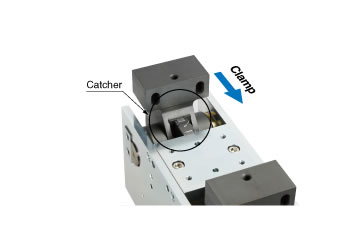

Catcher (detented positioning structure) is a standard feature for repeatable positioning.

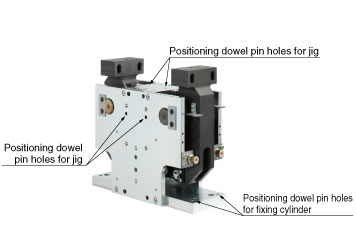

Dowel pin holes for repeatable mounting when reassembling
Allows for repeatable mount positioning in reassembly.

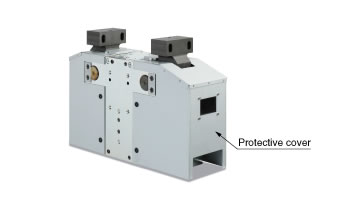

Optional spatter protective cover available
Modular structure allows easy assembly even after the cylinder is installed.

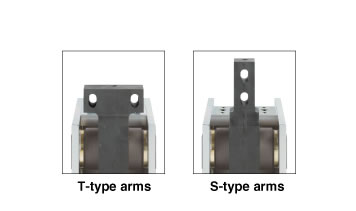

Standardized T-type arms and S-type arms
Shape selectable to meet specifications/application.
T-type arm width: 200, 240, 270 mm
S-type arm width: 130, 200, 240 mm
