SMC氣缸CKQG-X2370/CKQP-X2371高精度定位用銷釘夾緊缸：
| 種類 | 系列 | 缸筒內徑 | 行程 |
|---|---|---|---|
| 內置標準磁石 | CKQG-X2370 | 32, 40, 50 | 25, 30, 40, 50 |
| 內置強力磁石 | CKQP-X2371 | 50 | 30, 50 |

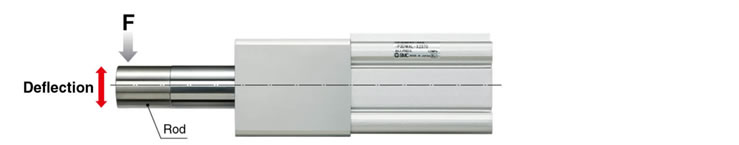

Rod end deflection of ±0.1 mm or less is achieved when a load is applied to the rod at its extension end.

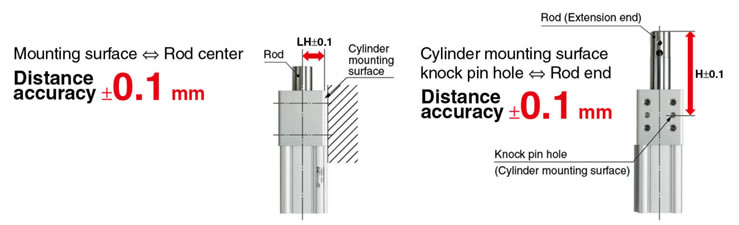

Mounting surface ? Rod center Distance accuracy ±0.1 mm
Cylinder mounting surface knock pin hole ? Rod end Distance accuracy ±0.1 mm
Removes welding spatters, foreign matter, cutting chips, etc. sticking to the piston rod.
