SMC氣缸CUJ/CDUJ小型自由安裝型氣缸：
| 型號 | 系列 | 動作方式 | 缸筒內(nèi)徑（mm） |
|---|---|---|---|
| 標準型 | CUJ | 單桿雙作用 | 4，6，8，10，12，16，20 |
| 標準型 | CUJ | 單作用（伸出） | 4，6，8，10，12，16，20 |

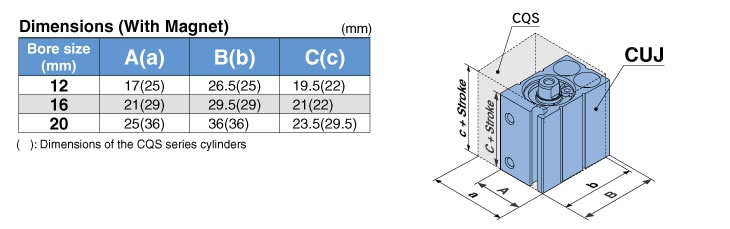

Full length is shortened by up to approx. 20%.
Volume is reduced by up to approx. 45%.
(Compared with the CQS series cylinders, double acting, with magnet)

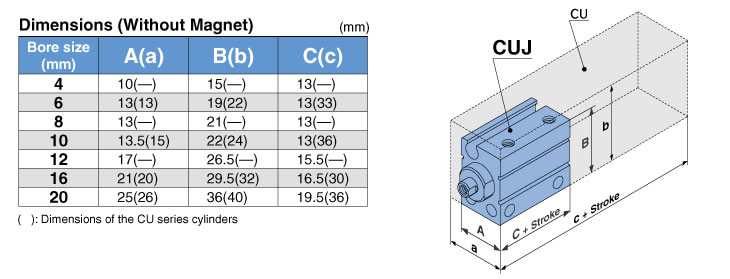

Full length is shortened by up to approx. 64%.
Volume is reduced by up to approx. 70%.
(Compared with the CU series cylinders, double acting, without magnet)

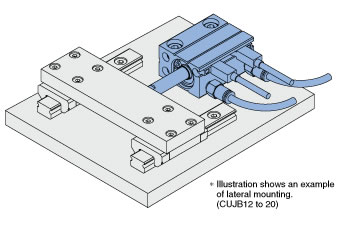

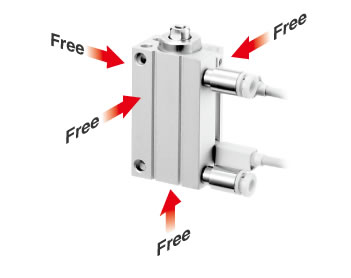

Allows more efficient installation, since four directions can be used freely.

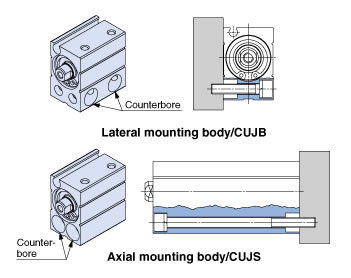

2 kinds of bodies are available.
There is no protrusion for a mounting bolt.
* ?12 to ?20 are available starting from a 5 mm stroke.

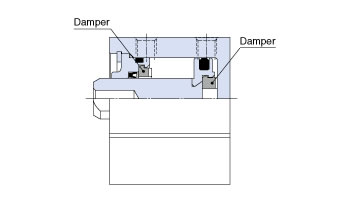

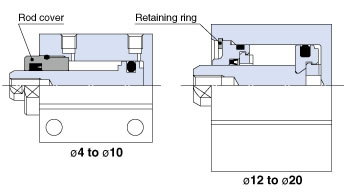

Seals can be replaced easily by just removing the rod cover (?4 to ?10) or retaining ring (?12 to ?20).

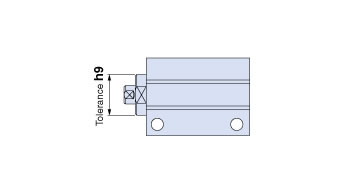

Centering can be done easily.

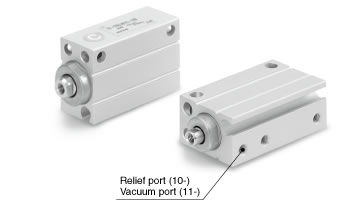

Series 10-CUJ/11-CUJ

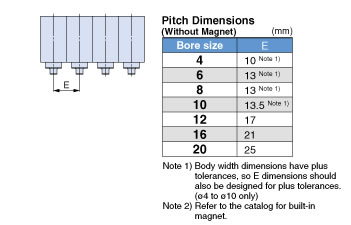

Short pitch mounting is possible.
