SMC氣缸MXQ□氣動滑臺：
| 形式 | 系列 | 動作方式 | 缸筒內徑 |
|---|---|---|---|
| 兩側配管型 | MXQ□A | 雙作用 | 6，8，12，16，20，25 |
| 小推力高剛性型 | MXQ□B | 雙作用 | 6，8，12，16，20 |
| 單側配管型 | MXQ□C | 雙作用 | 8，12 |
| 高度互換型 | MXQ | 雙作用 | 6，8，12，16，20，25 |

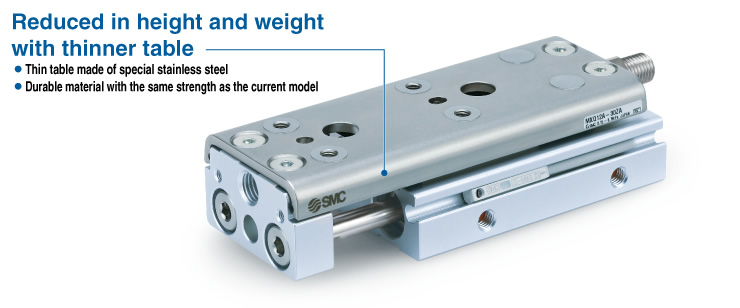

Reduced in height: 10% reduction (27 mm reduction, Current model: 30 mm)
Product weight: 22% reduction (298 g, Current model: 380 g)
Allowable kinetic energy: 64% improvement (0.09 J, Current model: 0.055 J)
? Comparison between the double-ported type and the current MXQ12-30 (without adjuster)

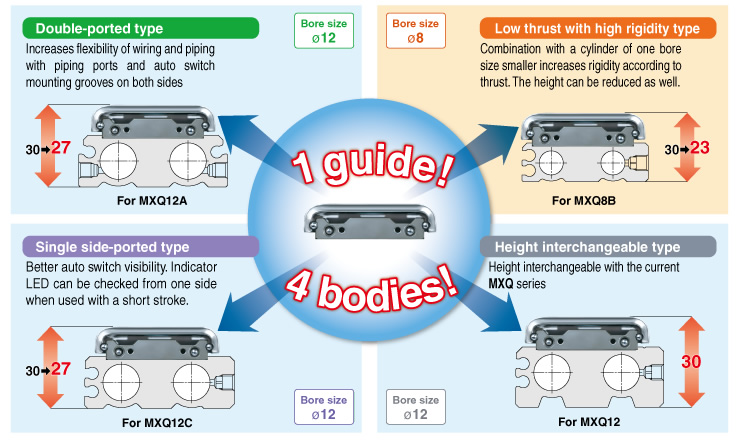

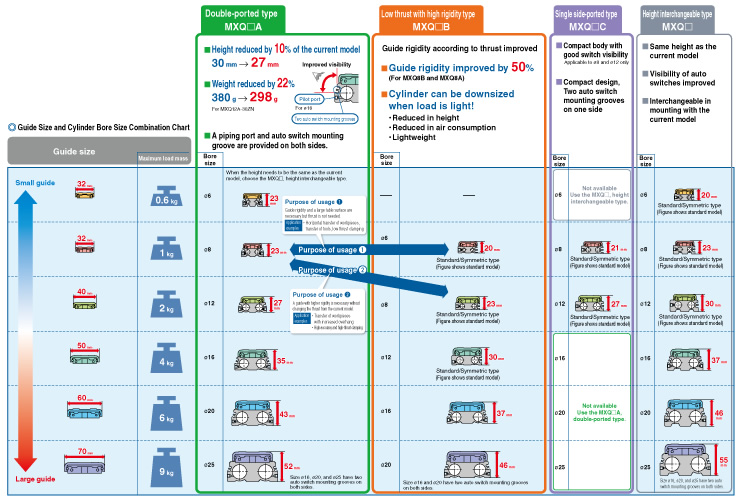

Select the best actuator with guide according to the application.

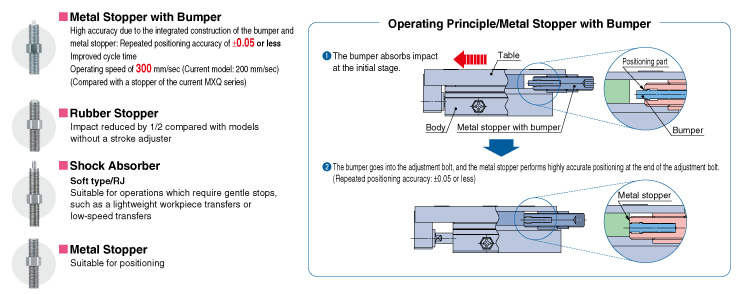

Stroke adjuster (Option)

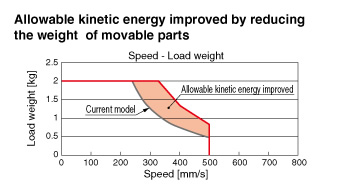

Allowable kinetic energy improved

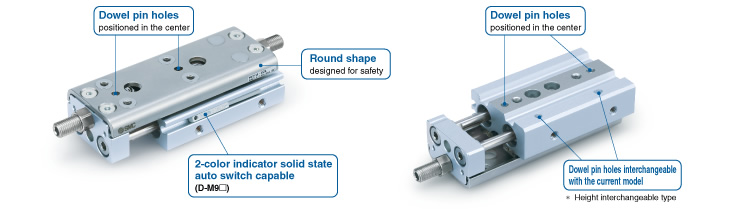

Table configuration for better function and easier maintenance

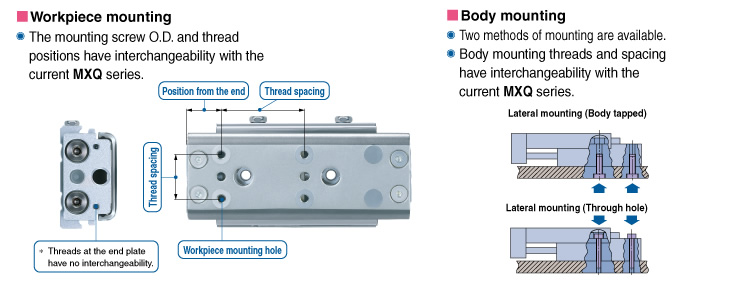

The mounting dimensions are equivalent to the current MXQ series.

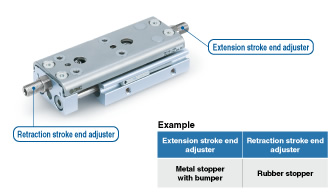

Various stroke adjusters (Option)

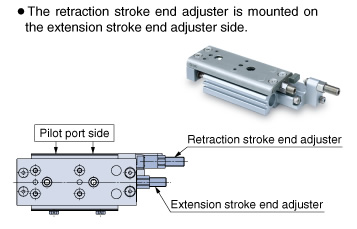

It is possible to combine an extension stroke end adjuster and a retraction stroke end adjuster.

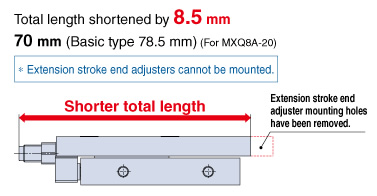

Shorter total length type table is now available.

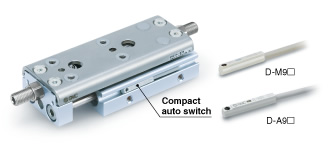

Compact auto switch is now available.
?Reed auto switch: D-A9□, D-A9□V
?Solid state auto switch: D-M9□(A), D-M9□W
Made to order options have been added. New
?Dual stroke specification
?Side adjuster specification
?Combined use of shock absorber + metal stopper, etc.

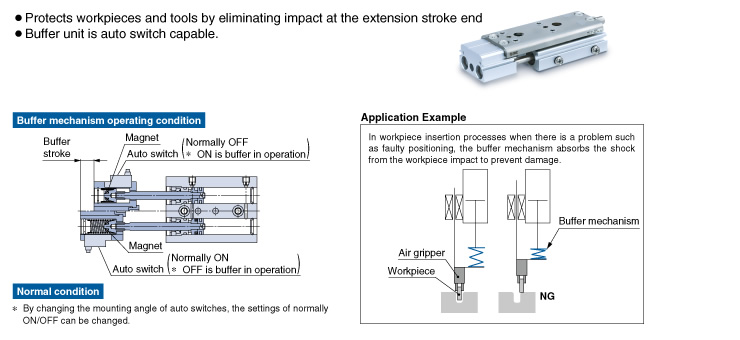

With buffer mechanism

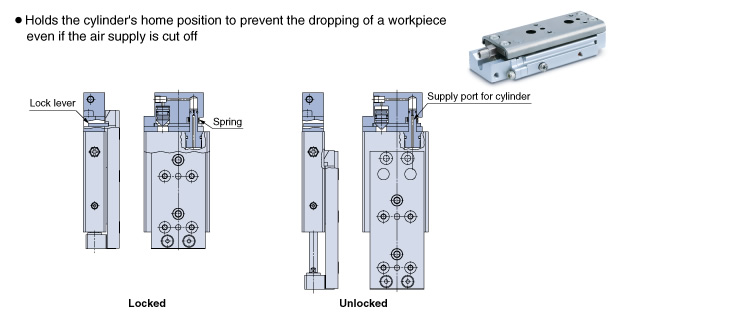

With end lock

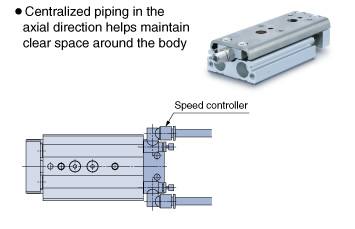

Axial piping

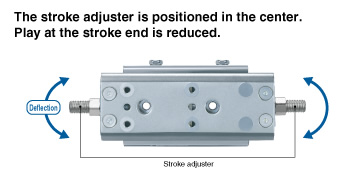

Centralized adjuster
