SMC氣缸C96/C96SD符合ISO規格的氣缸：
| 形式 | 系列 | 動作方式 | 缸筒內徑 |
|---|---|---|---|
| 標準型 | C96 |
單桿雙作用 雙桿雙作用 |
32，40，50，63，80，100，125 |
| 桿不回轉型 | C96K |
單桿雙作用 雙桿雙作用 |
32，40，50，63，80，100 |
| 平穩氣缸 | C96Y | 單桿雙作用 | 32，40，50，63，80，100，125 |

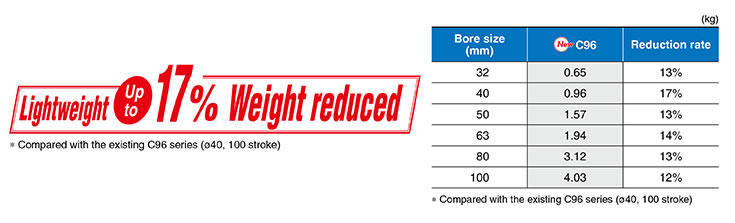

Achieved weight reduction by changing rod cover shape and piston structure

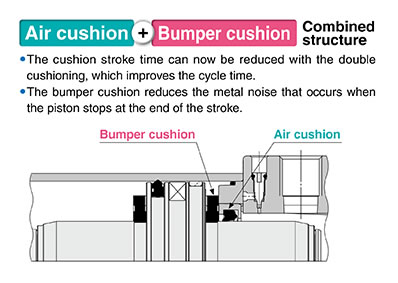

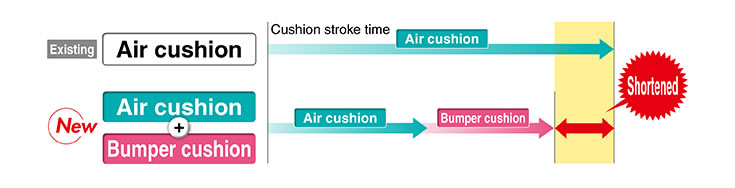

By adopting a new cushion method (Air cushion + Bumper cushion), Cycle time shortened
Air cushion + Bumper cushion Combined structure

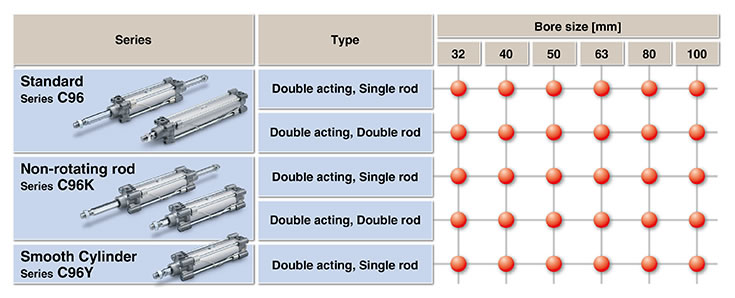

● Standard type, Double rod: Series C96-W
● Non-rotating rod type,
Single rod: Series C96K
Double rod: Series C96K-W
● Smooth Cylinder: Series C96Y
● Heat resistant cylinder (-XB6)
● With heavy duty scraper (-XC4)
● With coil scraper (-XC35) etc. are added.

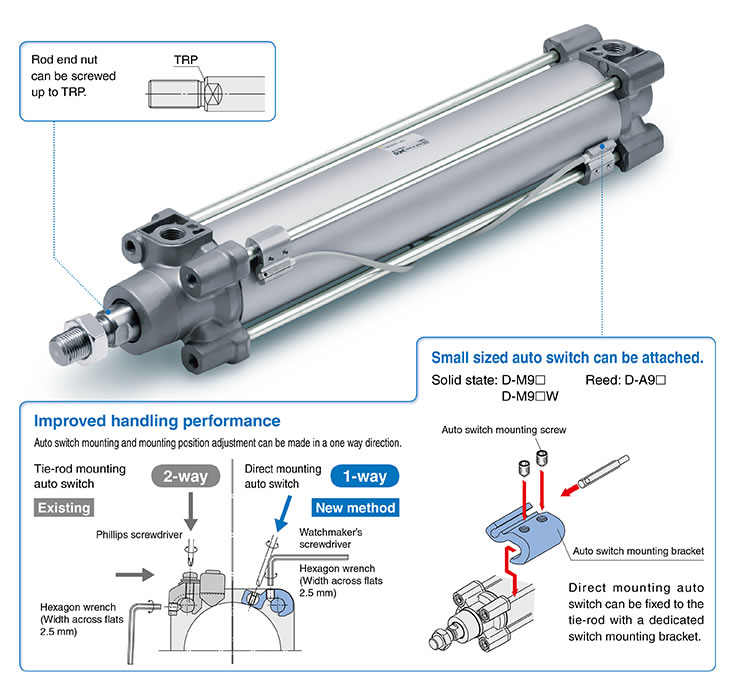

Mounting brackets can be combined according to the operating conditions.
